Remove this ad

Lead

Mar 19 07 9:53 PM

Tags : :

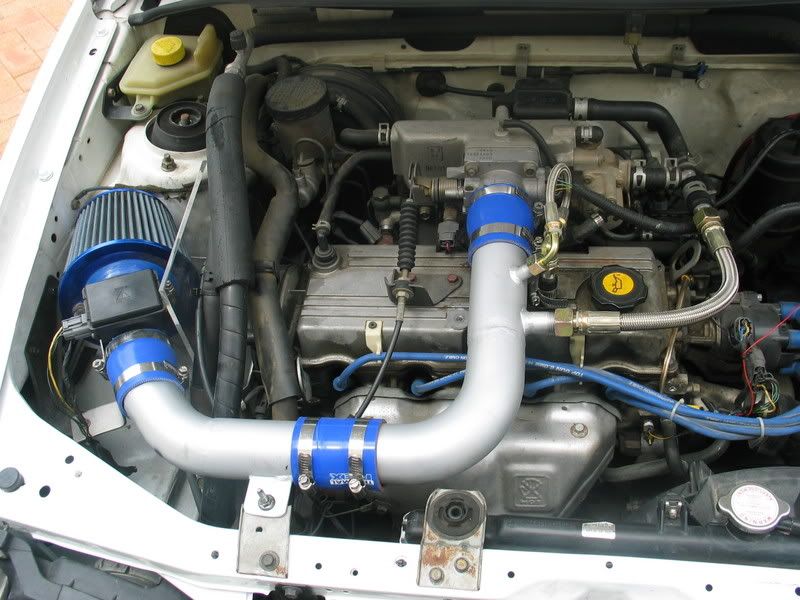

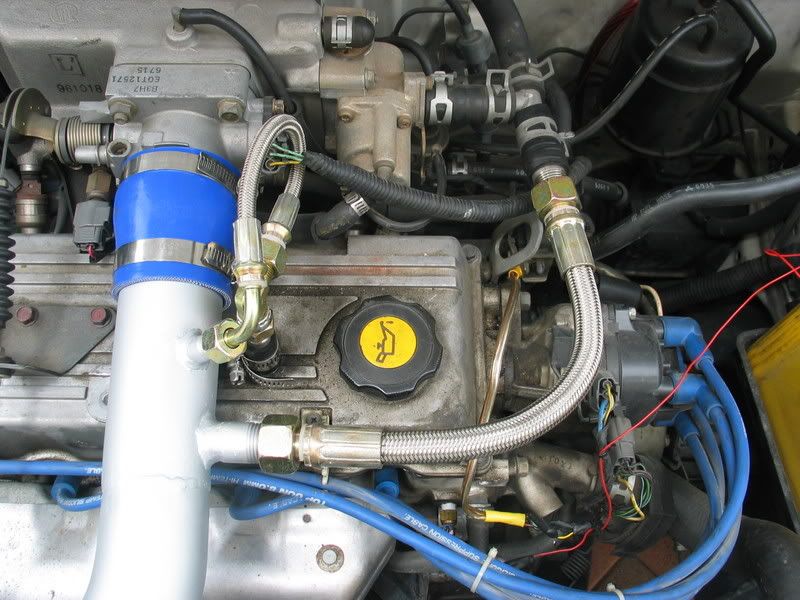

Its taken afew months in the making but its finally installed. Made from 2 and 1/4 inch stainless steel tubing that was painted in a heatproof aluminium colour. 1/4 and 1/2 inch BSP braided stainless steel hoses. A 6mm plexiglass heat shield protects the pod from engine heat. Pics speak for themselves, any questions just shoot

user posted image

user posted image

user posted image

user posted image
Quote    Reply
Remove this ad
Remove this ad

#1 [url]

Mar 19 07 9:55 PM

nice man looks pretty good

R.I.P DAVID JAMES HAYEK (DJ-xpnsyd), Owner of www.fordfestiva.com

Charles

2007 Ford Taurus, Daily Driver, 19-21 MPG AVG
1976 Chevy C20 Pickup. the toy
1951 Ford Deluxe, my baby, being rebuild


user posted image

Have an old car truck or tractor? Go here.
My Car Club

Quote    Reply

#4 [url]

Mar 20 07 1:23 AM

The pod that i just slammed on (stock piping) did the usual, nice induction noise and a very slight power gain. With that mod i was able to sit neck to neck with my mates Ford Lazer KH automatic (1.6L carby) in a race.

With this plus a cannon on the back i can stay infront of him for the whole race.

At around 4,000RPM there is a slight kick in the higher end of revs. Dosnt feel to be much loss of torque as you would come to expect with these sorta mods. I guess the heat shield would have more effect then the piping, but it has opened the front end up abit.

Thanks for the complements guys

Quote    Reply

#6 [url]

Mar 20 07 3:15 AM

very tidy job mate... indeed... very similar to my set-up... but I dont have the 2 braided hoses on mine. That has confused me. What are those two outlets from the main pipe for? and what do they do or where do they go to ???? When mine was done I didnt have those two outlets.... <confussed>

Regards,




SPIRO
--------------------------------------------------------------------
user posted image

2000 Ford Aspire WF 1.5 3dr (current)
1989 Ford Capri SA 1.6 (current)

Quote    Reply

#7 [url]

Mar 20 07 3:24 AM

LOL disregard my previous post... I found what they are... Just lifted up the hood then and saw what they are....

mine was modified after that part....

(i feel stoopid now)

regards,


SPIRO
--------------------------------------------------------------------
user posted image

2000 Ford Aspire WF 1.5 3dr (current)
1989 Ford Capri SA 1.6 (current)

Quote    Reply

#8 [url]

Mar 20 07 7:56 AM

Hahaha thats kool, i think the larger pipe is used by the throttle body to do with feedback, the smaller one i really have no idea, drove with it off for afew days and didnt notice a difference, can any1 offer an insight

Quote    Reply
Remove this ad

#9 [url]

Mar 20 07 12:45 PM

thats slick man but just so its out there you can just get little filters to plug into the stock pipes so that you dont have to weld a new nipple in the intake when making a home made one

user posted imageuser posted imageuser posted image
^^the only ford aspire that has blaze^^

Quote    Reply

#11 [url]

Mar 21 07 12:18 AM

The smaller one is the PVC, its function is to route oil gases from the engine in to the air intake so it can be burn up, instead of just dumping it on the ground like the pre smog vehicles.

Quote    Reply

#14 [url]

Mar 22 07 7:54 AM

4 foot of straight tubing was around $40 only used a foot thou

the three bends came to around $35

nipples were $8 for both

braided lines were over $130 for the pair

pod was only $25

thats australian dollars thou

Quote    Reply

#16 [url]

Mar 25 07 5:47 AM

For a person new to fabrication and who wasnt generally a handy or physically inclined person then this project would be fairly difficult maybe a 7 or 8. If you are good with your hands and making stuff this will be easy 2 or 3.

I brought the steel and then began to mark out and position how i wanted things to go, checking for clerance and such. Marked the angle and orientation of the pipes so the ends would line up to be welded. My mate did the welding. I drilled afew holes etc and dissabled the stock intake. Not a hard project all in all

Quote    Reply
Remove this ad
Add Reply

Quick Reply

bbcode help
